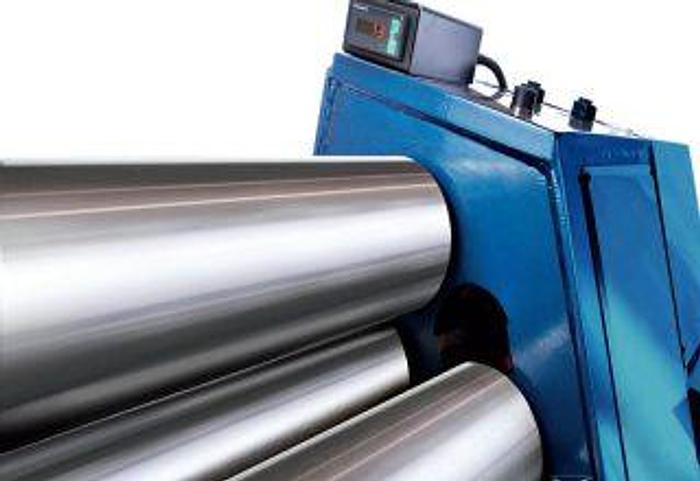

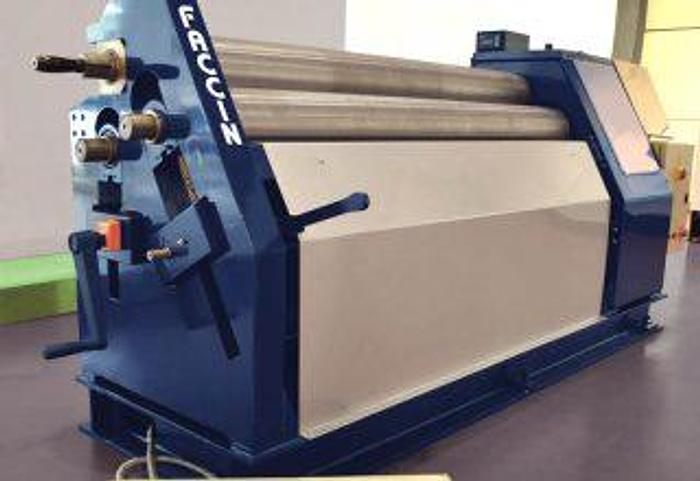

Faccin 3 Roll Bending Machine 3 ASI

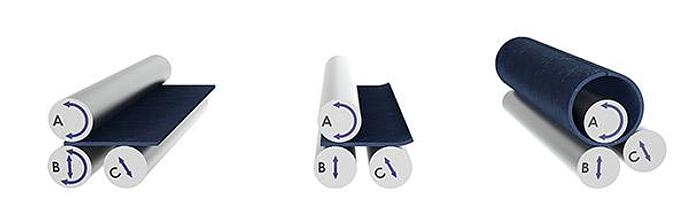

The initial pinch bending roll model of the ASI series is the best solution for bending plates with thickness between 1 mm and 9 mm and width from 1000 mm to 3000 mm. The reliability of the ASI series is guaranteed by its solid electro-welded structure, oversized and assembled on steel rods. In addition, asymmetric geometry in the roll movement featured by the 3-roll bending rolls of the series assures optimal traction and prevents slipping of thin plates during pre-bending: the side roll moves on a linear guide that bends the material close to the pinching point, thus assuring a high quality result comparable to that obtained with more expensive models of 4-rolls plate bending rolls.

ASI asymmetrical bending rolls assure ease of use thanks to the foot control that allows a single operator to fully control all stages, from plate feeding, to pre-bending and bending operations.

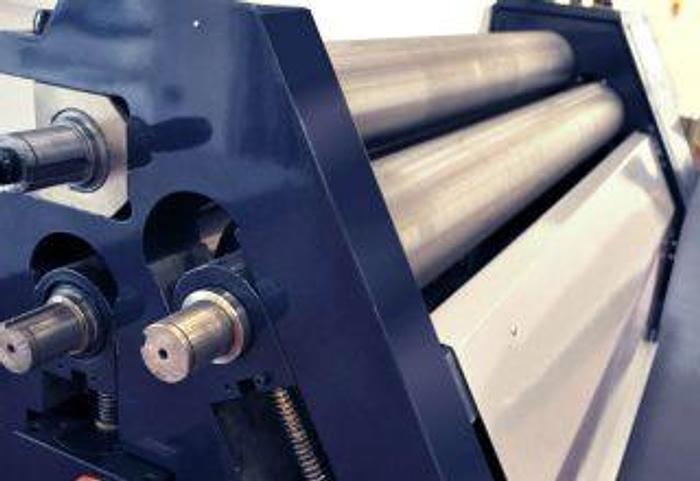

ASI asymmetric initial pinch bending roll models can be fitted with rolls for profiles and rolls for tubes. Furthermore, all bending machines of the series are supplied as standard with roll shaft extension, which makes it possible to bend profiles. Thanks to the stiff self-supporting frame, ASI 3-roll bending rolls designed, manufactured and sold by Faccin can be placed securely on any type of surface. Faccin’s ASI series asymmetric bending rolls are the best solution to roll cylinders, assuring the highest performance against a minimum initial investment.

Standard equipment:

Two motorised rolls

Induction hardened rolls

Polished roll surface

Motorised pre-bending and bending

Bending roll tilt

Rolls with extensions for bending profiles

Mobile pedal controls

Emergency barrier around the machine

CE certified machine

Optional features:

Digital readouts for roll position

Conical device

Painting with special colours

Profile bending rings

Numerical controls

Version with vertical rolls

Version with corrugated rolls
