HE&M Saw VT 100LM-45

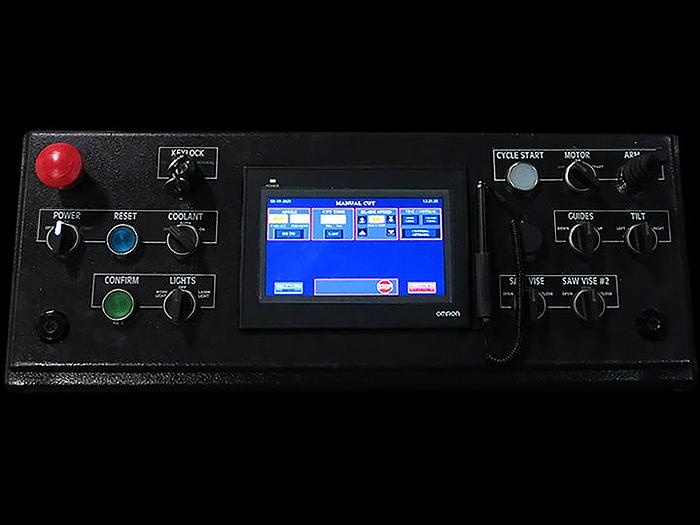

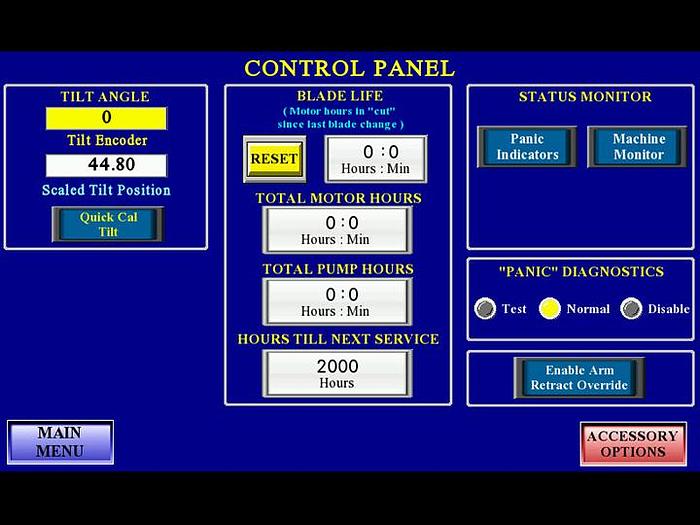

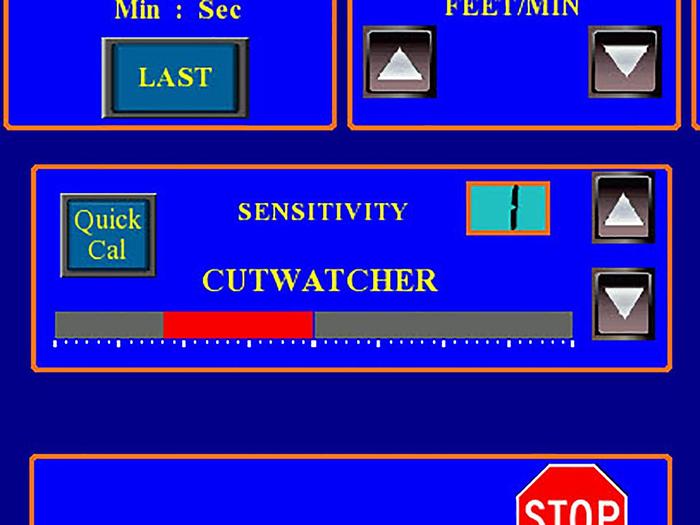

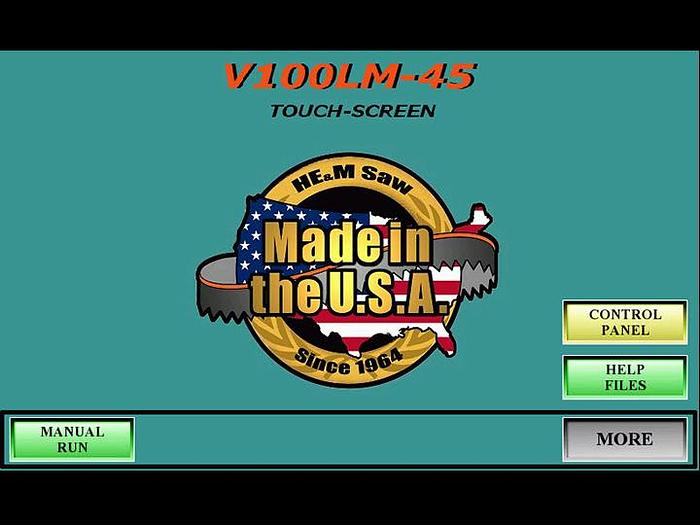

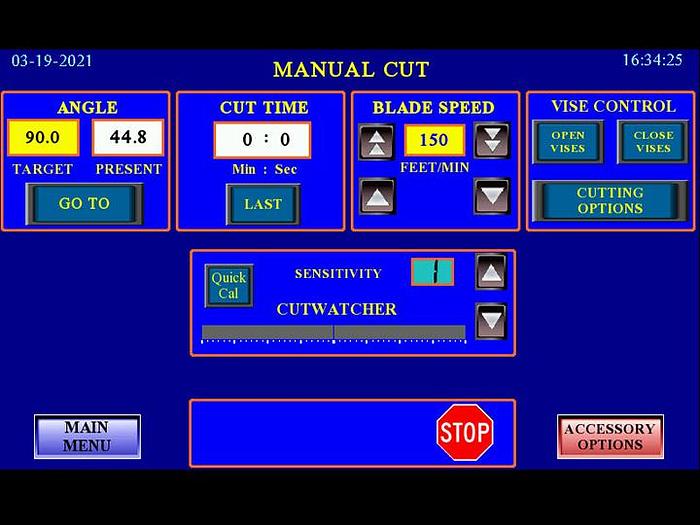

The VT100LM-45 will miter up to 45ᵒ in both directions. A self-contained hydraulic system powers the full stroking vise, arm tilt, and guide arm. Functions are operated from a touch screen control and the saw can be operated in manual or semi-automatic. Various options are available. Control Console w/ 7" Touch Screen 2 Degree Arm Cant Powered Tilt w/ Angle Readout on Touch Screen Vise - Full Stroking Main Adjustable Clamping Force Carbide Blade Guides Variable Blade Speed w/ Readout on Touch Screen Guide Arm - Powered Air Powered Blade Tension Adjustable Feed Rate Adjustable Cutting Pressure Coolant System - Flood w/ Wash-Down Hose Blade Brush Boltable Side Wings for Coolant Drainage 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator) Vise - 2nd Main Power Programmable Tilt from Touch Screen Passive "Cut Watcher®" System (Reduces Vert. Capacity by 1") Laser Light System 12" H Wear Plates - Non Mitered Idle Base Rollers - 1 Each Side of Base Right to Left Feed Direction Spray Mist Lubrication Non-Miter 90° Lock 5' Roller Load Table 10' Idle Roller Load Table 5' Roller Discharge Table 10' Roller Discharge Table 5' Idle Roller Stock Table 10' Idle Roller Stock Table
