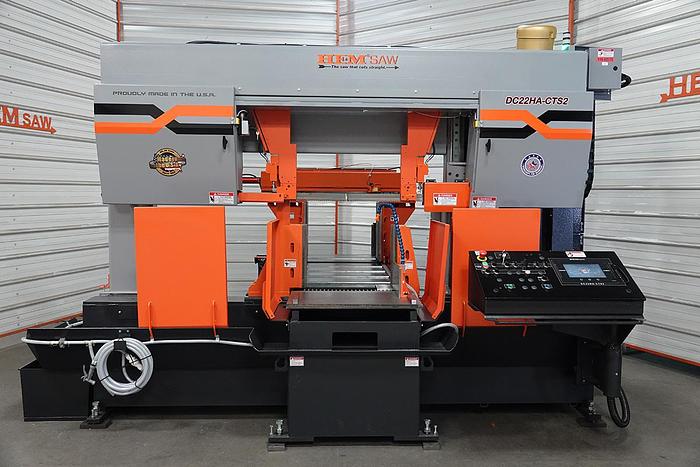

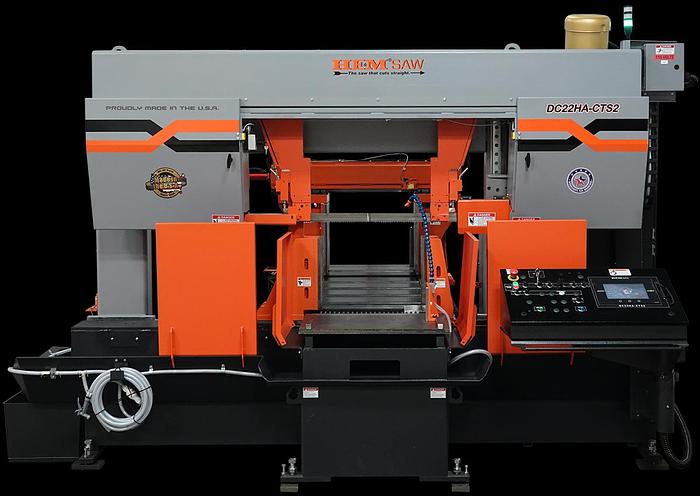

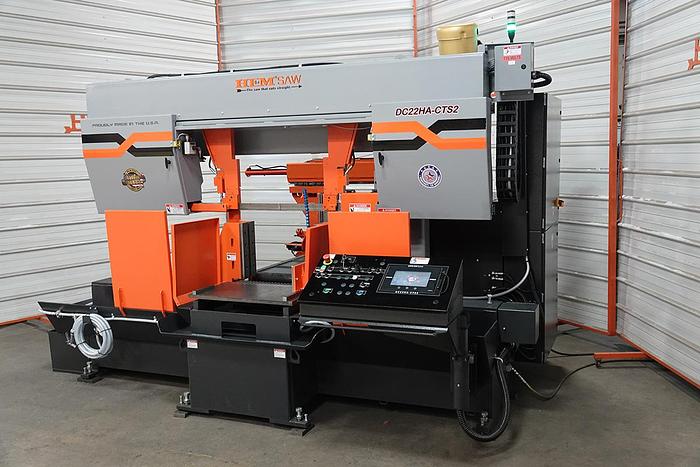

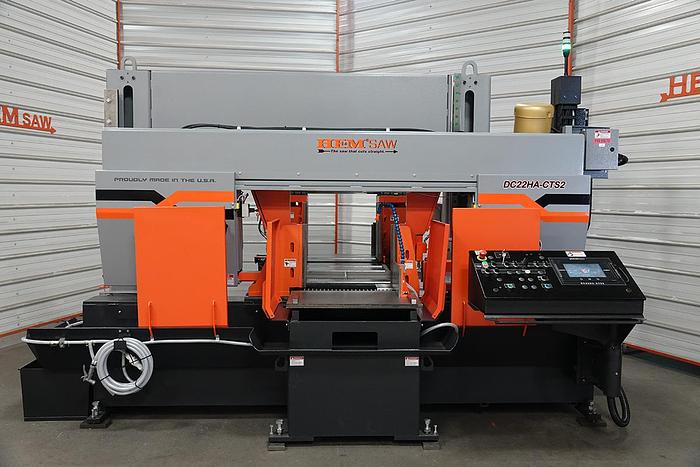

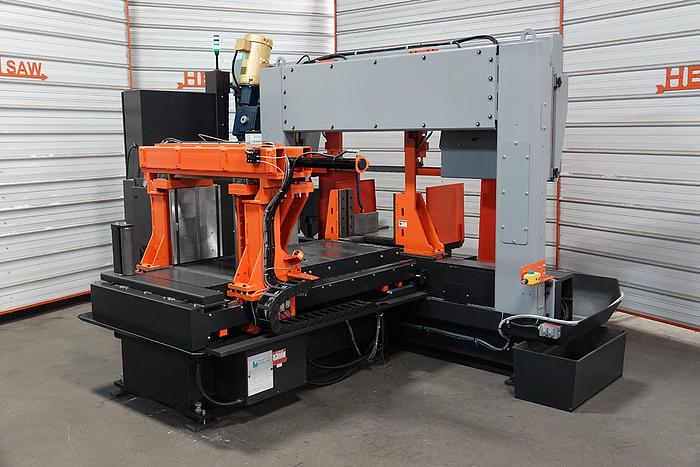

HE&M Saw DC22A

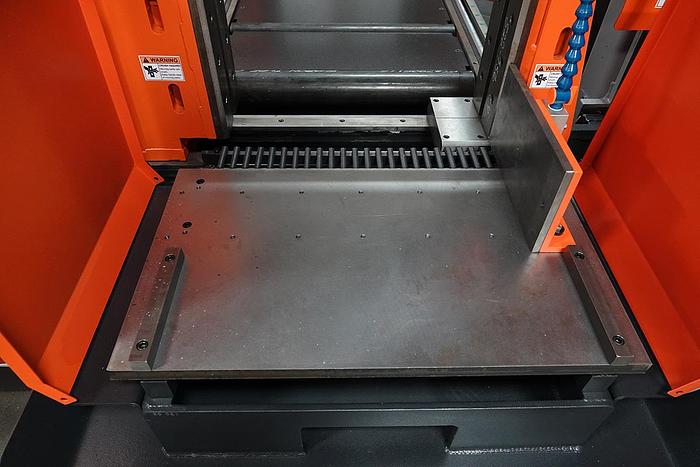

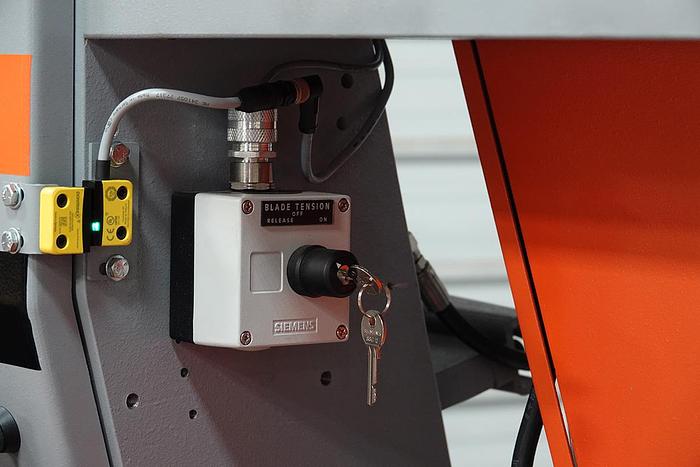

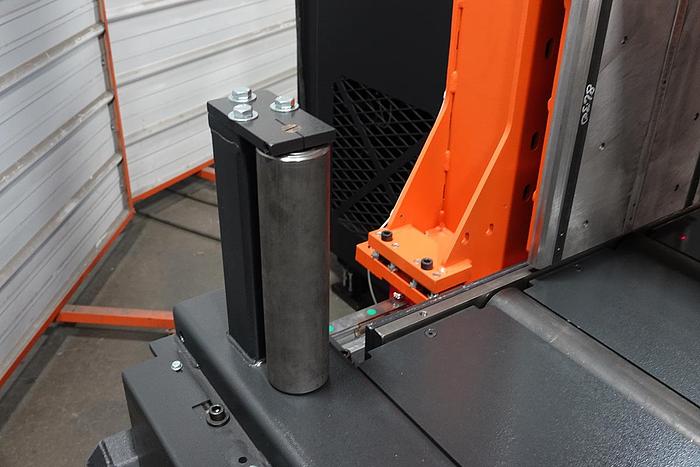

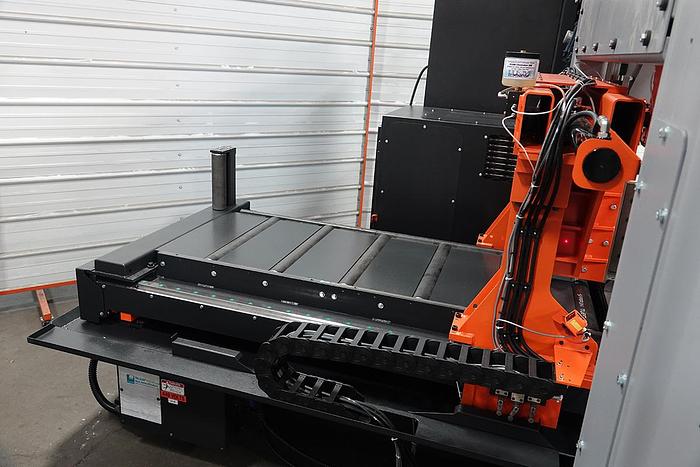

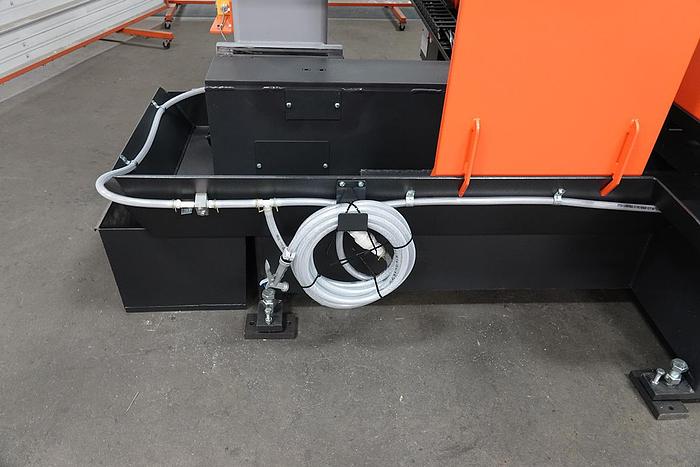

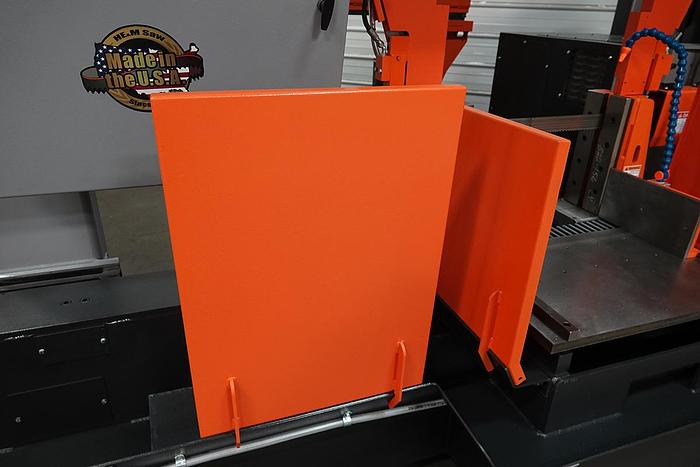

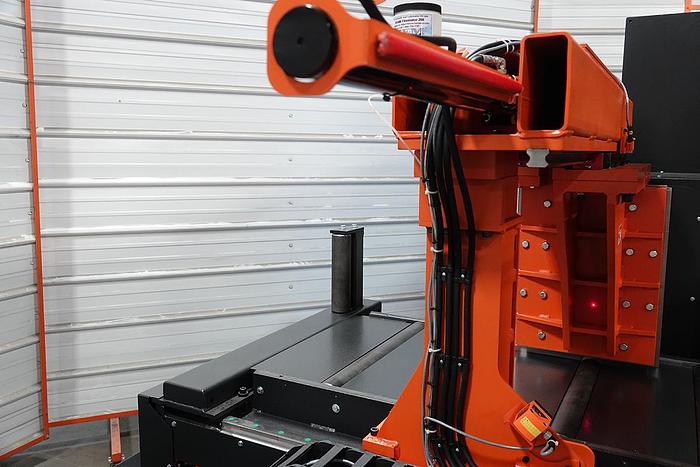

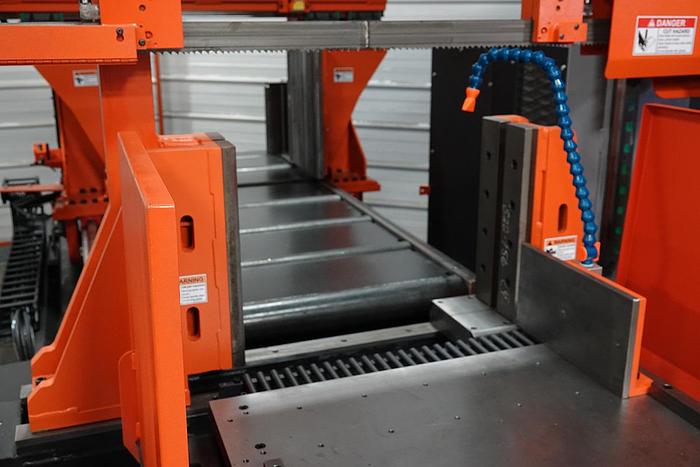

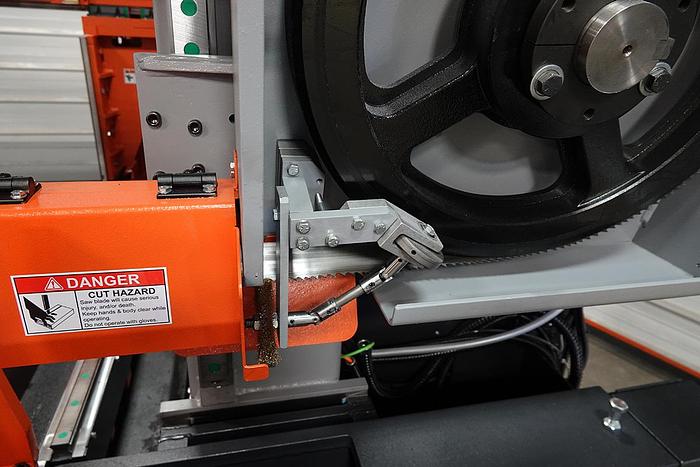

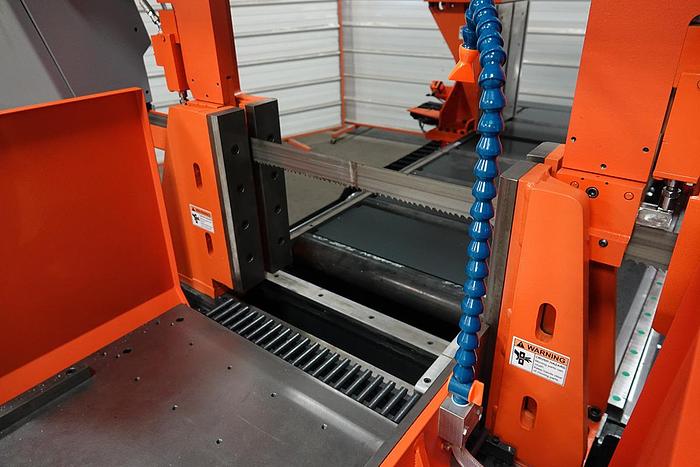

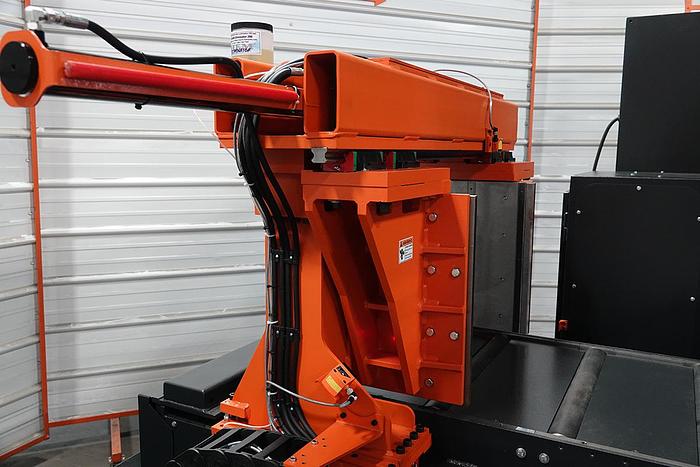

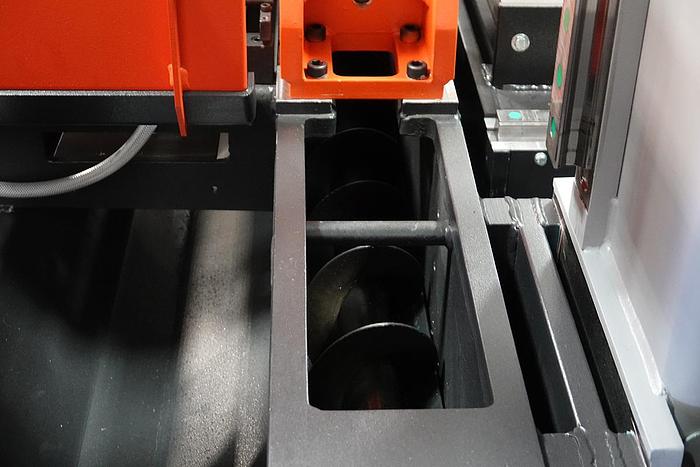

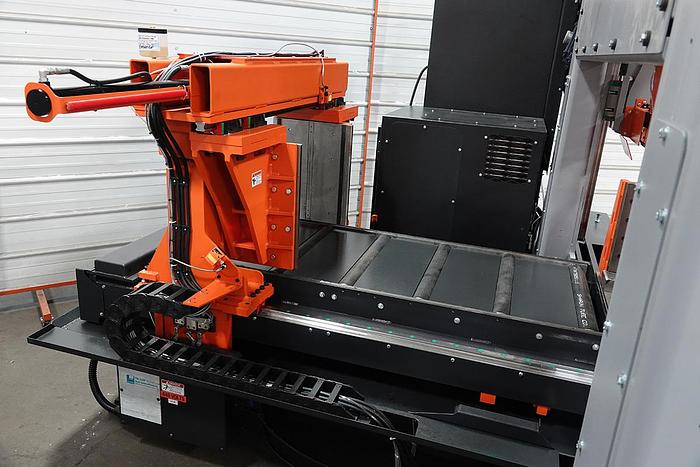

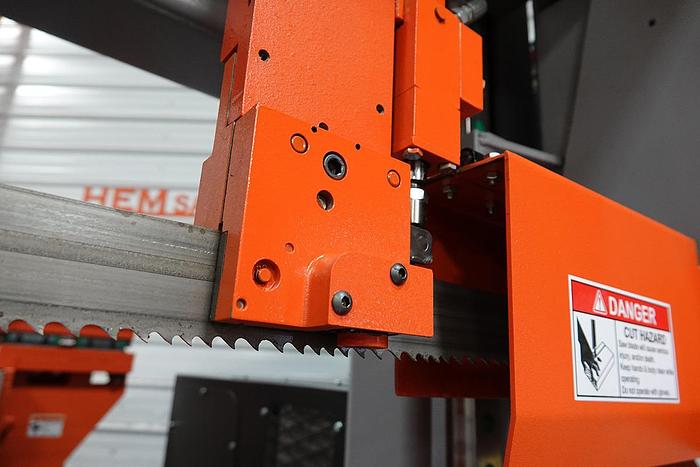

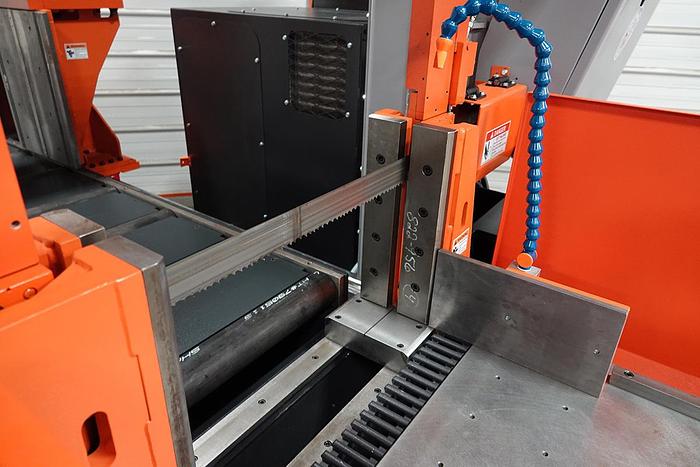

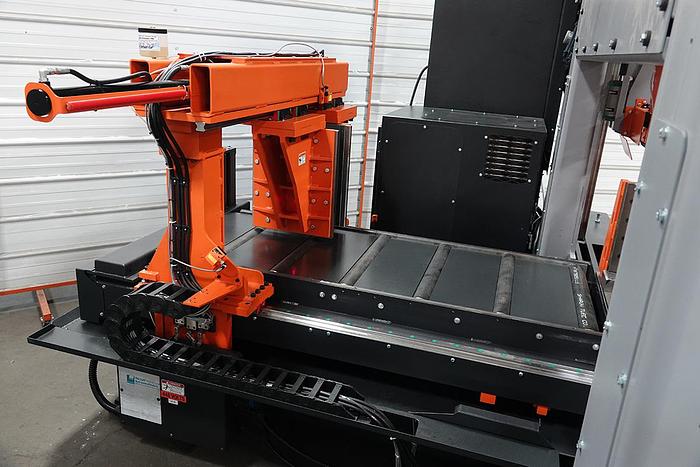

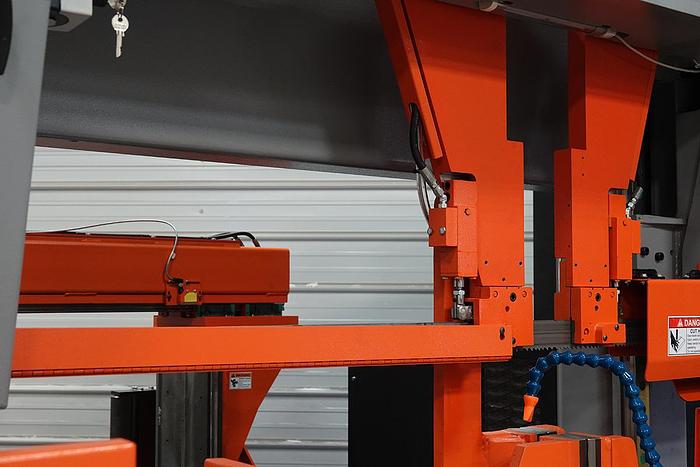

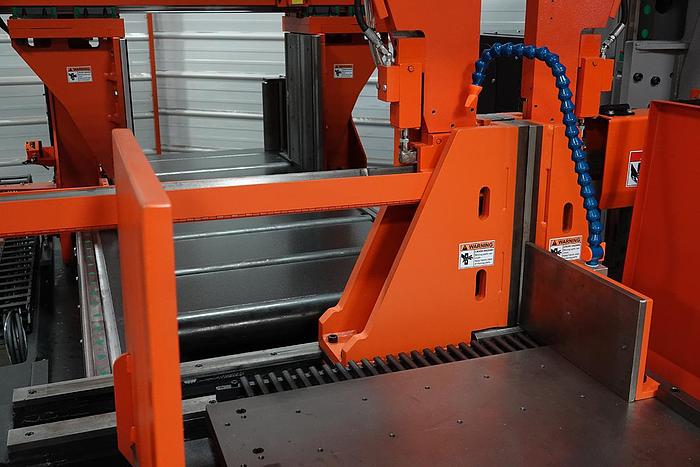

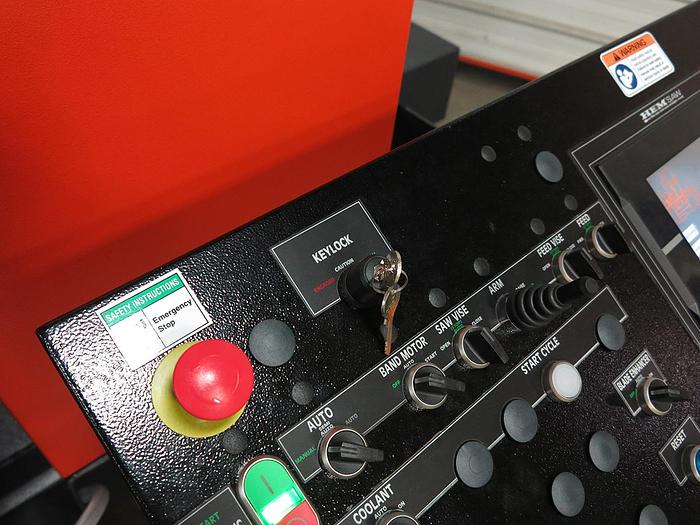

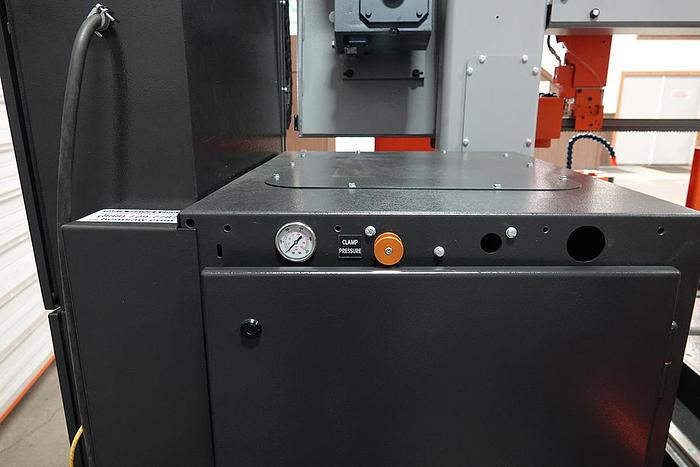

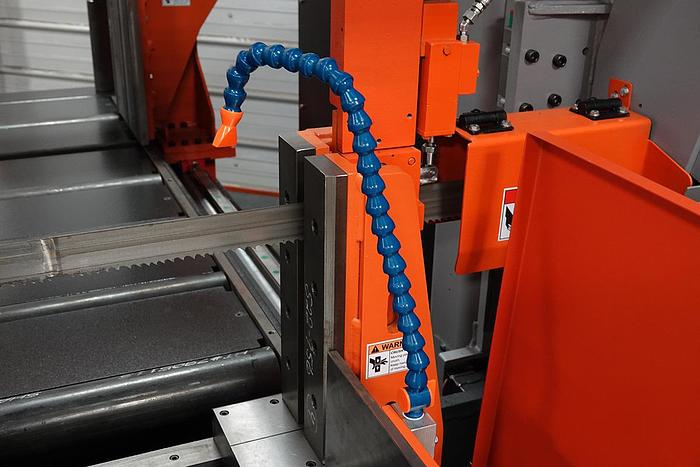

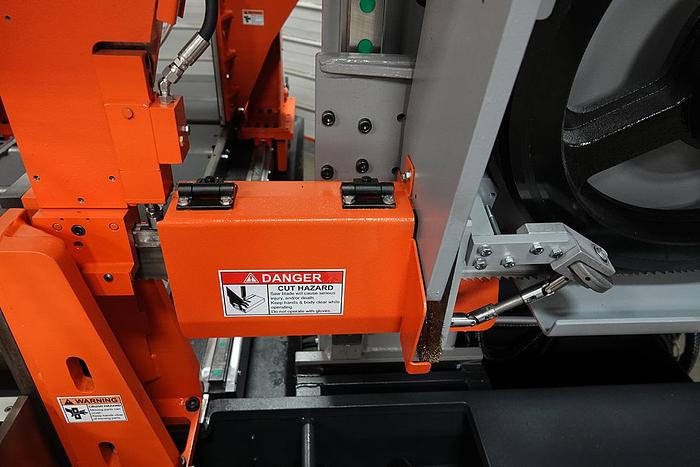

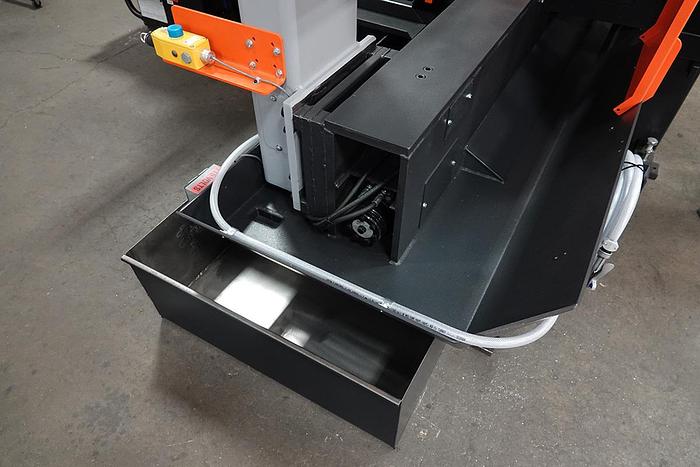

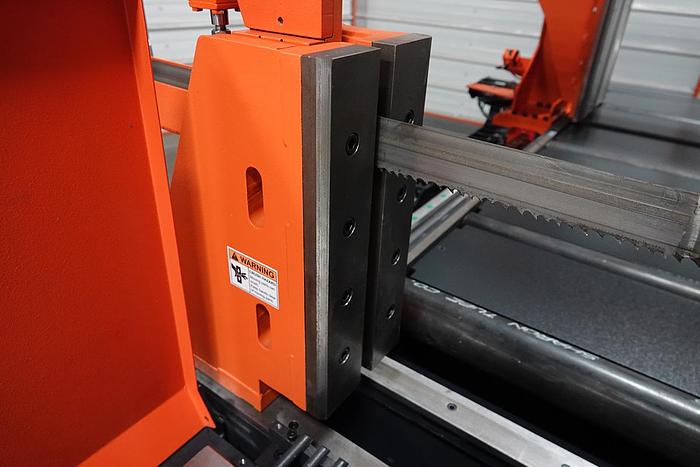

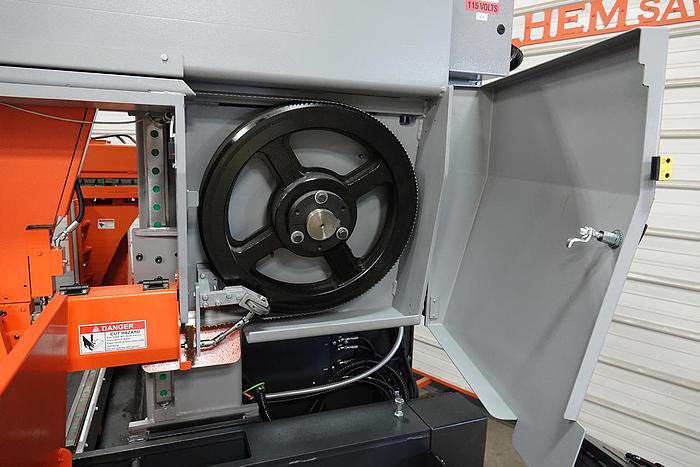

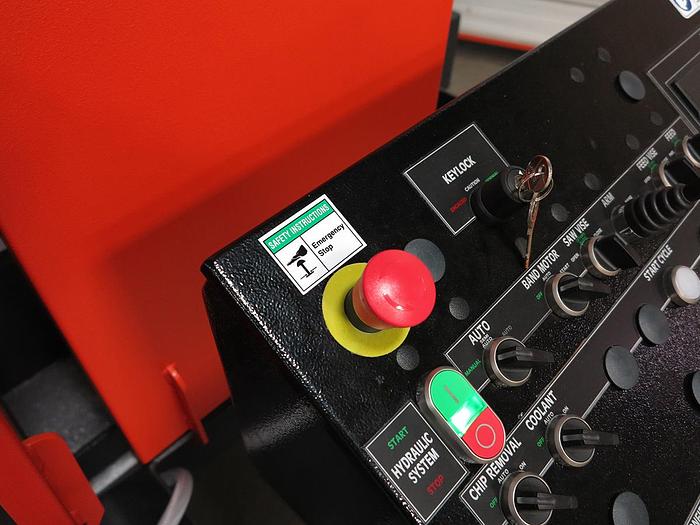

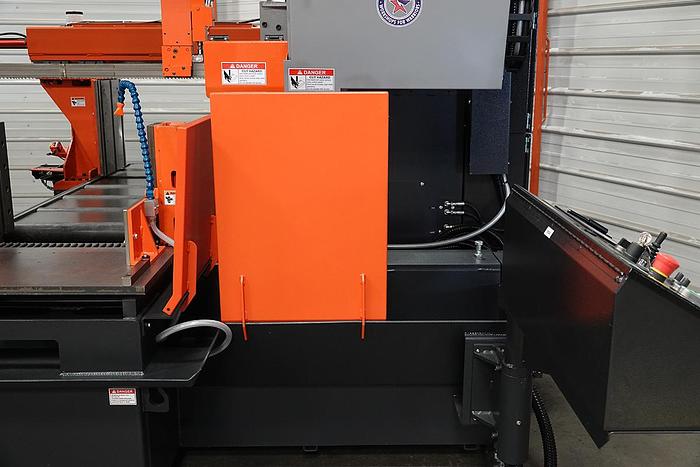

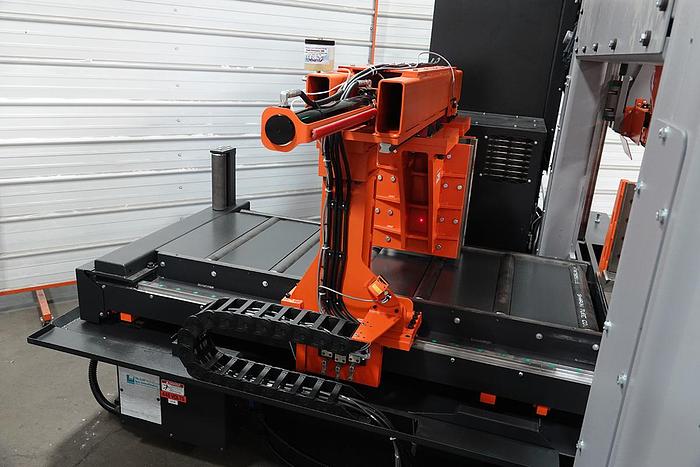

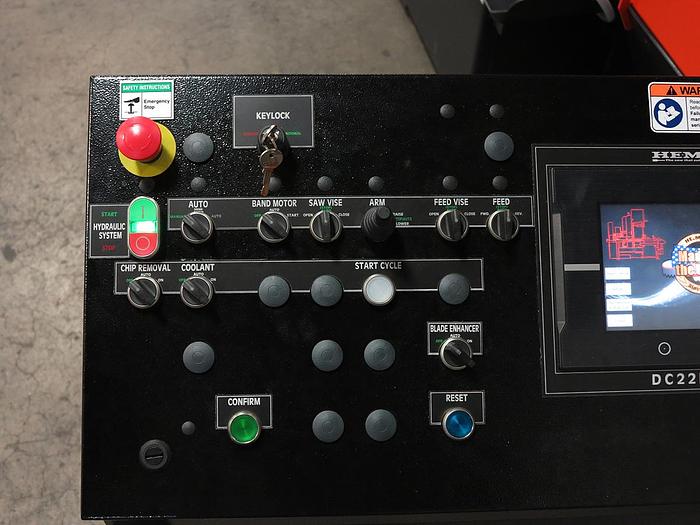

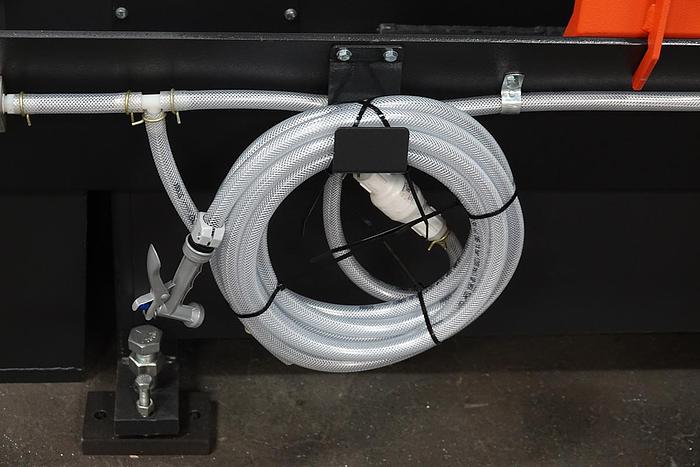

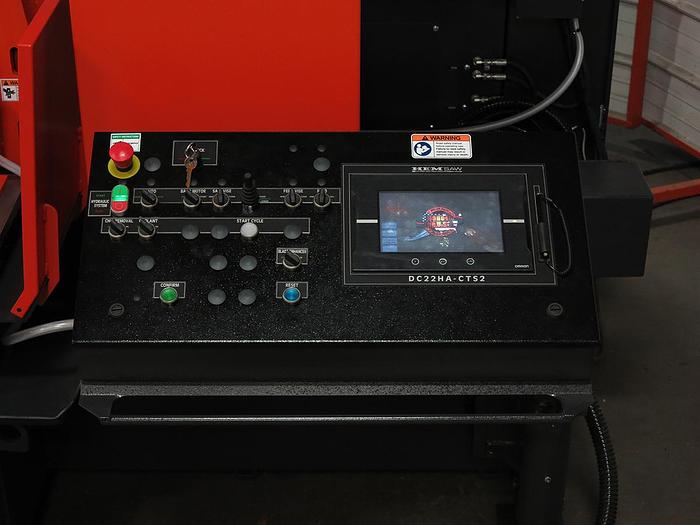

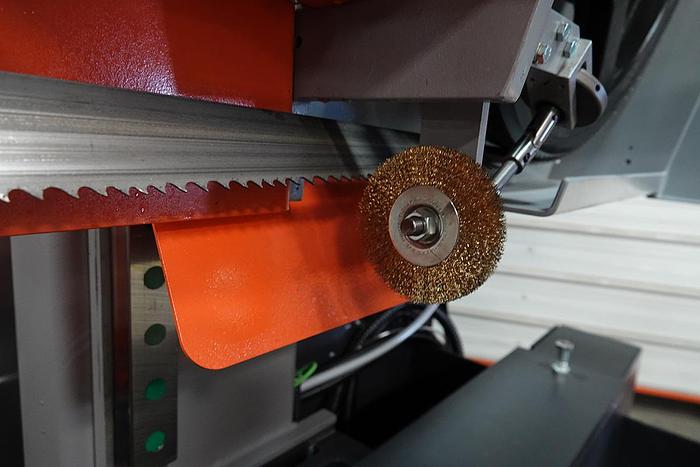

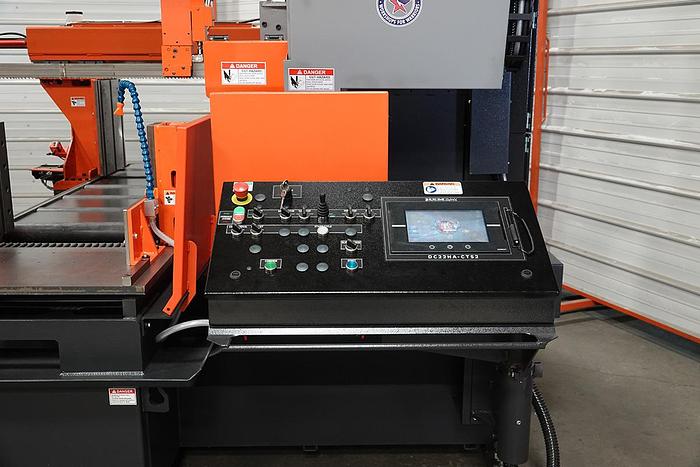

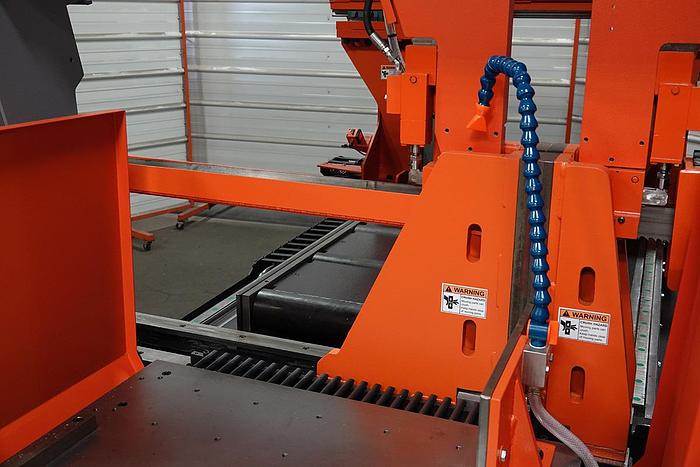

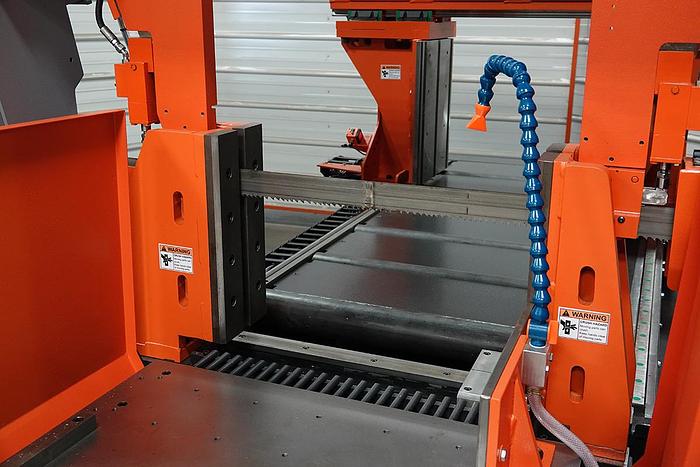

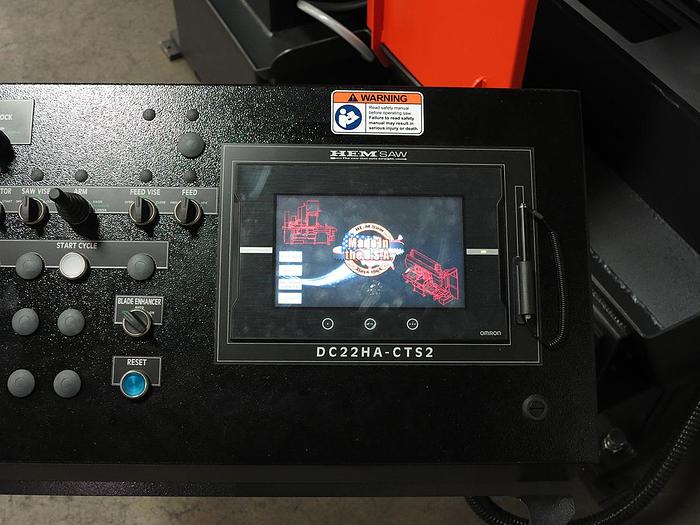

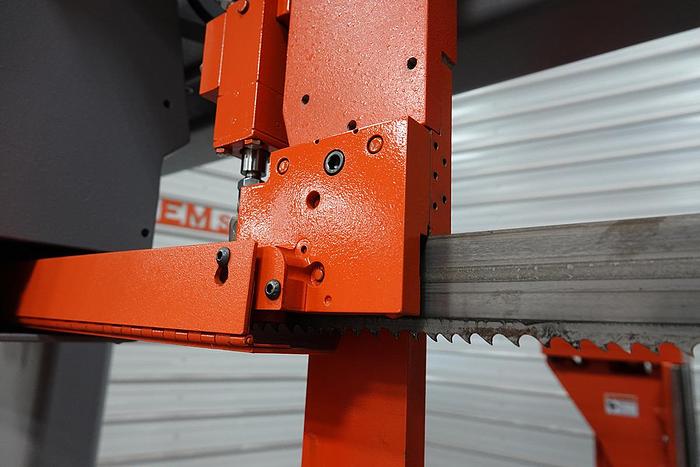

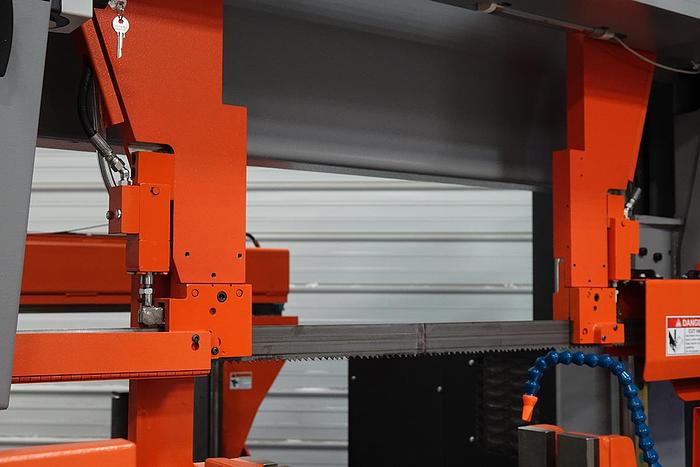

The DC22A band saw operates using a touch screen control mounted in a swing-away console. A 48” servo twin ball-screw bar-feed is standard and a 120” version is optional. A full-stroking main vise positions automatically with the powered guide arm. The Cut Watcher® System and chip auger are standard. Smart Saw® Control Console w/ 9" Touch Screen Industrial IOT Ready - MTConnect Output 24" Solid Discharge Table Full-Stroking Split Main Vise Adjustable Clamping Force Carbide Blade Guides Lead In/Lead Out Roller Guides Guide Arm Moves in Conjunction w/ Main Vise Variable Blade Speed w/ Readout on Touch Screen Passive "Cut Watcher®" System Adjustable Feed Rate Adjustable Cutting Pressure Powered Blade Tension Chip/Swarf Removal System - Chip Auger Blade Brush Coolant System - Flood w/ Wash-Down Hose Two-Hand Operation Controls Broken Blade Function Out-of-Stock Function Automatic Blade Idle Blade Change Interlock Safety Guards 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine 0-120" Stroke Servo Twin Ball-Screw Bar-Feed w/ 3rd Vise Heavy-Duty Servo Feed Bar-Feed Filler Plates Top Clamp - Full Capacity Main Vise (Increases Remnant Length by 2") Top Clamp - Full Capacity Feed Vise (Increases Remnant Length by 3") Top Clamp - Full Capacity Outboard Vise Vise - 3rd on Feed Vise - Outboard Powered on Discharge Roller Discharge Table (in Lieu of Solid) Servo Controlled Traverse (SCT) - Includes Active "Cut Watcher®" Remote Diagnostics Laser Light System Pedestal Mounted Control Console Roll-Around Control Console Cold Weather Package Hydraulic Tank Heater 5' Idle Roller Stock Table 10' Idle Roller Stock Table 10' Powered Roller Stock Table
